- Meshco is a fully integrated South African manufacturer of high-security fencing solution.
- Bringing elements of colour and design together, while creating a unique signature that meets today’s demand for increasing visibility and security.
- Fabricated from 3mm, 4mm or 5.6mm wire with apertures of 12.7mm x 75mm (HxW) (see product specification pages) our WireWall SecureMax fencing system is extremely unlikely to be breached – providing maximum time delay for intrusion detection and reaction.
STRUCTURE
Cover Plate
The cover plate is manufactured form 1.1mm zinc aluminium coated steel and can be thermoplastic coated to your specific colour requirements. Dimensions: 60mm x 16mm x 1.1mm.
Panel
The panel nests securely behind the steel cover plate to form a uniform clamping system. The panel is available in 3mm, 4mm or 5.6mm wire and panels are available with or without v bends.
Fencing Post

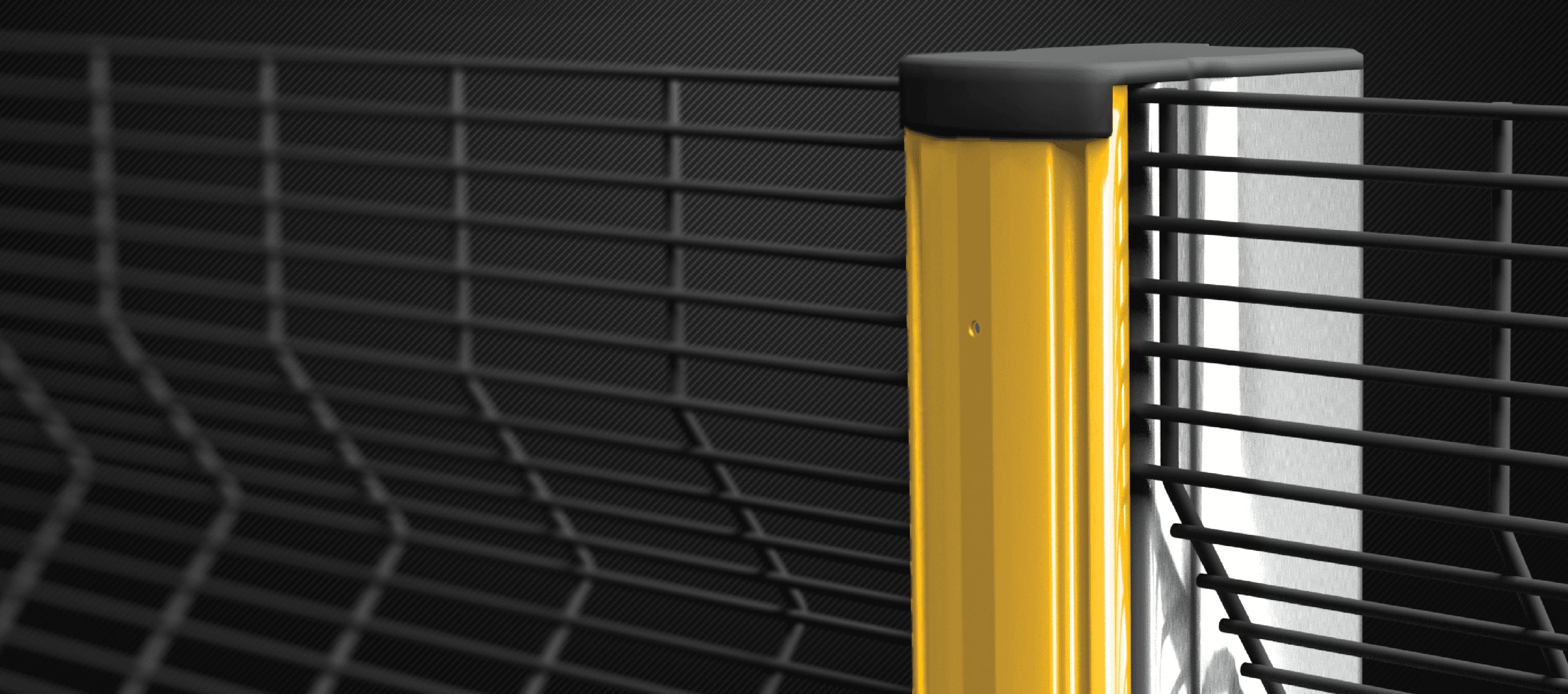

The zinc aluminium coated, rolled profile post (75mm x 60mm x 1.5mm. Also available in 2mm thickness for 3000mm and 3600mm posts) is pre-punched prior to thermoplastic coating. The system is designed to accommodate uneven ground levels and the most difficult landscapes and is compatible with panels from our ALLFOR and ALLVIEW ranges.
The Clamping System
The Cap
The UV stable Polypropylene cap tightly locks into the top of the post sealing if off to minimize moisture entering the post.

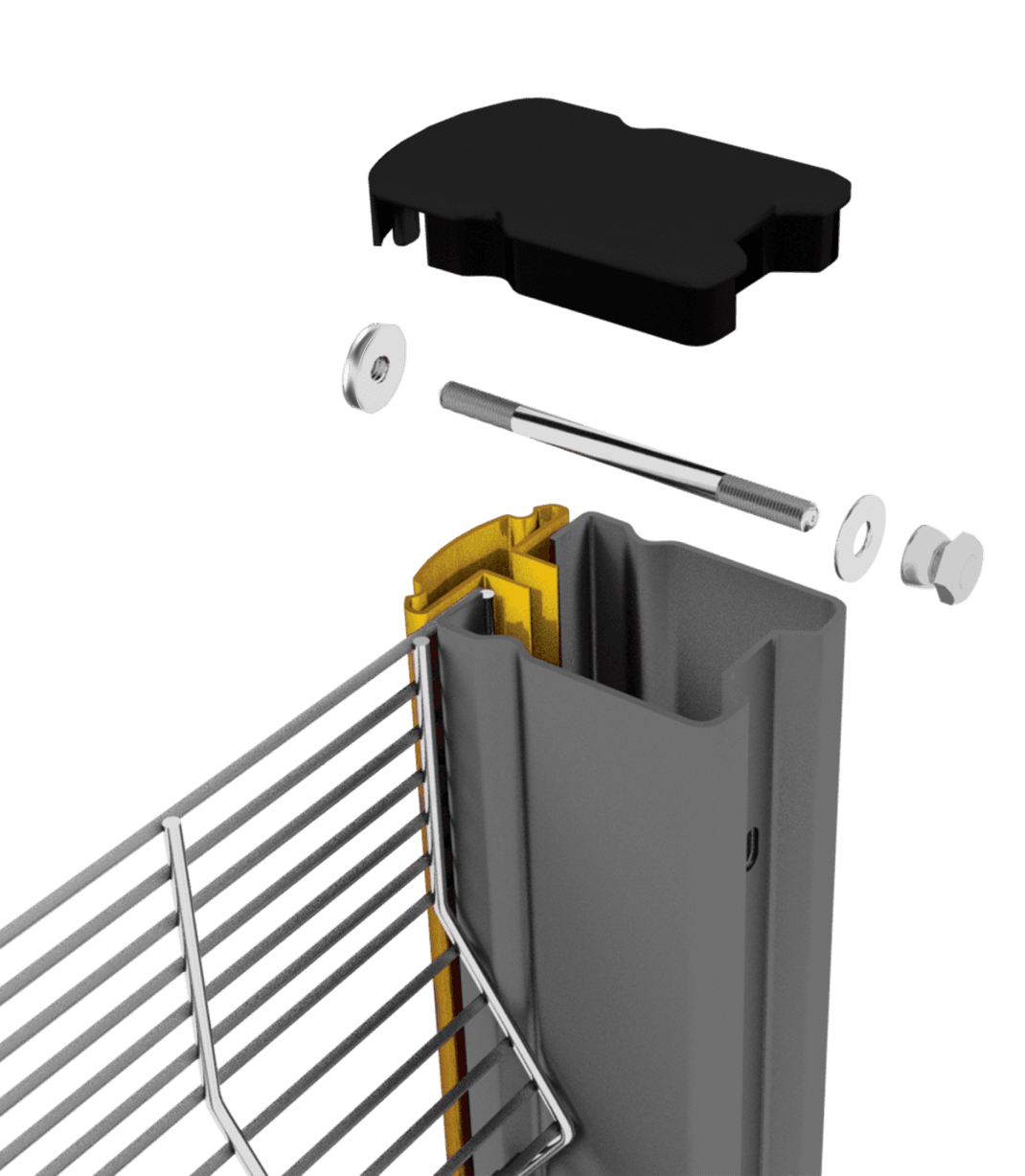

The Fixing
The system offers unique fixing detail with no visible fixators, and includes:
The Panel is slotted over the front end of the post and is clamped by a front cover plate and pinned together with a unique concealed fixing system that is aesthetically pleasing on the eye and minimizes tampering.
Additional Security
Product Offering
Product Specifications
